Since 2001, Huanding achieved significant cooperation with Halliburton for different types of logging equipment. With strict and professional training, Huanding team is able to independently manufacture, process and test the contracted system.
Product

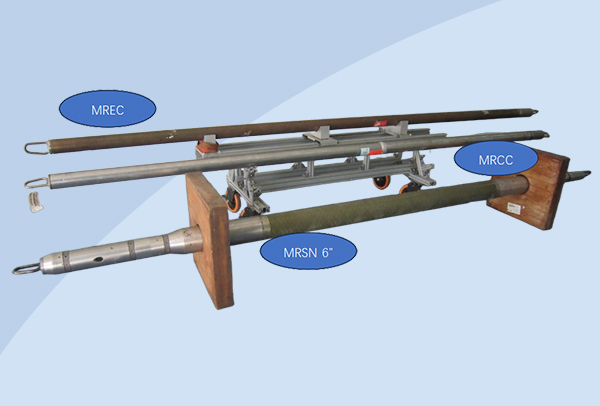

MRIL-P MAGNETIC RESONANCE IMAGING TOOL
The Magnetic Resonance Imaging Logging (MRIL) tool is a centralized tool
that provides porosity and other petrophysical parameters related to the
overall productivity of hydrocarbons in the downhole environment. The tool does
this by measuring hydrogen atoms located within a thin-walled,
cylindrical-volume concentric to the axis of the tool. The main components of
the tool consists of a strong permanent magnet, which produces a gradient
magnetic field used to polarize hydrogen atoms, and an antenna which both
transmits a Radio Frequency (RF) signal and receives an echo response.

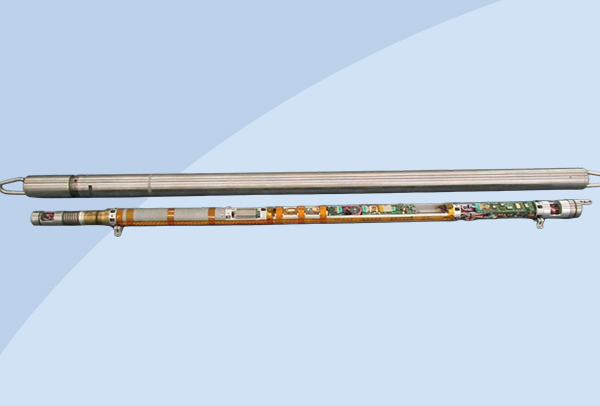

TELEMETRY & GR CATRIDGE-D4TG
It
receives the command download by the surface system, then transmit this command
to the logging tools after decoding. It
also can code and amplify the data from the logging tools and upload it to the
surface system. Meantime, multiple analog could be acquired.

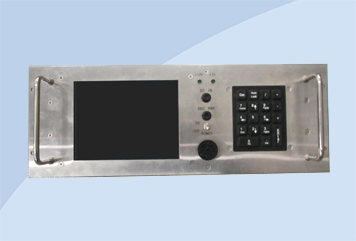

SDDP DEPTH/TENSION PANEL
When connected with code wheel, it can acquire the
rotation turns of the code wheel by measuring the pulse count. Then calculate the
length by the wheel perimeter. When
connected with tension meter，it can acquire the surface
tension value by analog acquisition and A/D conversion.

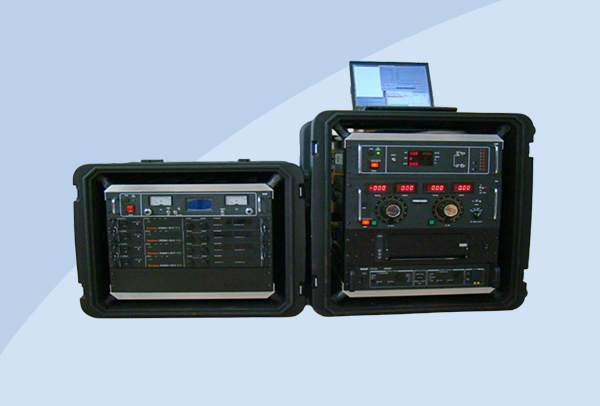

HH-2000 PORTABLE IMAGING LOGGING SURFACE SYSTEM
During the cooperation with Halliburton of assembling MRIL-P Magnetic
Resonance Imaging Tool, upon the license of DEMP Interface Panel and CLASS
Acquisition Logging Software, the HH-2000 Portable Imaging Logging Surface
System is successfully developed by our company. This system can be compatible
with the DITS series conventional and imaging logging tools of Halliburton,
including MRIL-P tool. Most of the hardware is integrated into two independent
cases. It provides an effective, cheaper and convenient approach to use imaging
logging technology for conventional logging teams inChinalogging market.
