Product Name：Downhole pipe cutter
|
Type：
|
|
|
producer：
|
|
|
Description：
|

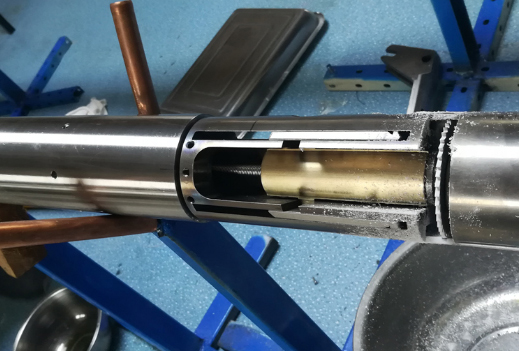

Downhole pipe cutter is used to cut oil pipes, drill pipes, casing, etc. The engineer operate the software to complete the cutting action at the specific task point in the well.
|
Tool IntroductionTool compositionTool specificationTool features
Downhole pipe cutter is used to cut oil pipes, drill pipes, casing, etc. The engineer operate the software to complete the cutting action at the specific task point in the well.
Compared with the traditional method of blasting with explosives or corroding with chemicals, the cutter has a flat incision, complete cutting, no pollution. The workion is safe and reliable, the cutting range is controllable, and the loss of other materials is avoided.
1.Surface system
2.Tension and CCL system
3. Downhole cartridge system
4. Downhole sonde system(consists of anchoring and cutting part)
MAX temperature: | 175 ℃ |
MAX pressure: | 138Mpa |
Tool OD: | 73mm；54mm |
Tool length: | Sonde 2.6m, cartridge 2.8m |
Tool weight: | Sonde 60kg, cartridge 60kg |
Pipe dimensions: | 80~127mm |
MAX pipe OD: | 139mm (changeable blade) |
Working time: | 30 min |
Motor power supply: | Small motor: 50VDC 150W, large motor: 150VDC 1200W |
Surface power supply: | 220VAC |
·The tool has modular design and is easy to maintain and install.
·Visualinterface workion, digital control.
·Use high-power brushless DC motor drive, highly efficient lower power demands
·Equipped with CCL and telemetry communication.
·Hydraulic control integrated design, one-time molding processing, high reliability.
·Realize automatic control of cutting, feeding and rotating actions
