Product Name：73mm/54mm Downhole pipe cutter
|
Type：
|
73mm，54mm
|
|
producer：
|
|
|
Description：
|
Downhole pipe cutter is used to cut oil pipes, drill pipes, casing, etc. The engineer operate the software to complete the cutting action at the specific task point in the well.
Compared with the traditional method of blasting with explosives or corroding with chemicals, the cutter has a flat incision, complete cutting, no pollution. The workion is safe and reliable, the cutting range is controllable, and the loss of other materials is avoided.
|
IntroductionCompositionSpecification
Downhole pipe cutter
is used to cut oil pipes, drill pipes, casing, etc. The engineer operate the
software to complete the cutting action at the specific task point in the well.
Compared with the
traditional method of blasting with explosives or corroding with chemicals, the
cutter has a flat incision, complete cutting, no pollution. The workion is safe
and reliable, the cutting range is controllable, and the loss of other
materials is avoided.

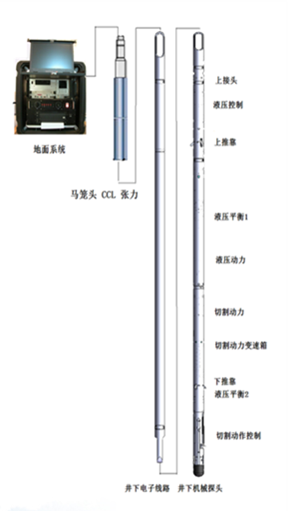

Tool
composition
1. Surface
system
2. Tension
and CCL system
3. Downhole cartridge
system
4. Downhole sonde
system(consists of anchoring and cutting part
|
MAX temperature:
|
175 ℃
|
|
MAX pressure:
|
138Mpa
|
|
Tool OD:
|
73mm；54mm
|
|
Tool length:
|
Sonde 2.6m, cartridge 2.8m
|
|
Tool weight:
|
Sonde 60kg, cartridge 60kg
|
|
Pipe dimensions:
|
80~127mm
|
|
MAX pipe OD:
|
139mm (changeable blade)
|
|
Working time:
|
30 min
|
|
Motor power
supply:
|
Small motor: 50VDC 150W, large motor: 150VDC 1200W
|
|
Surface power supply:
|
220VAC
|
