Product Name：Φ54MM/Φ80MM/Φ85MM Tractor
|
Type：
|
|
|
producer：
|
|
|
Description：
|
The tractor is a kind of tool to convey downhole tools into a horizontal well or highly deviated well. When logging in such kind of wells, downhole tools couldn’t be loaded down to target depth by gravity, the tractor with its own power in it will be used to convey downhole tools to the right position.
|
FunctionCompositionTechnical specificationsTechnical featuresApplications
The tractor is a kind of tool to convey downhole tools into a horizontal well or highly deviated well. When logging in such kind of wells, downhole tools couldn’t be loaded down to target depth by gravity, the tractor with its own power in it will be used to convey downhole tools to the right position. Comparing with the drill pipe convey, logging time, the working strength, and the risk of construction are reduced. And no rigs are needed. Comparing with oil tubing, the convey distances are longer and not effected by the well depth.

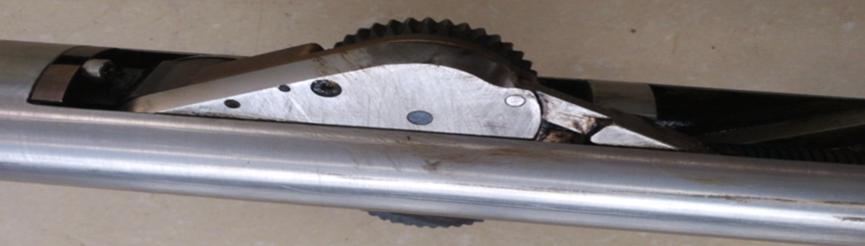

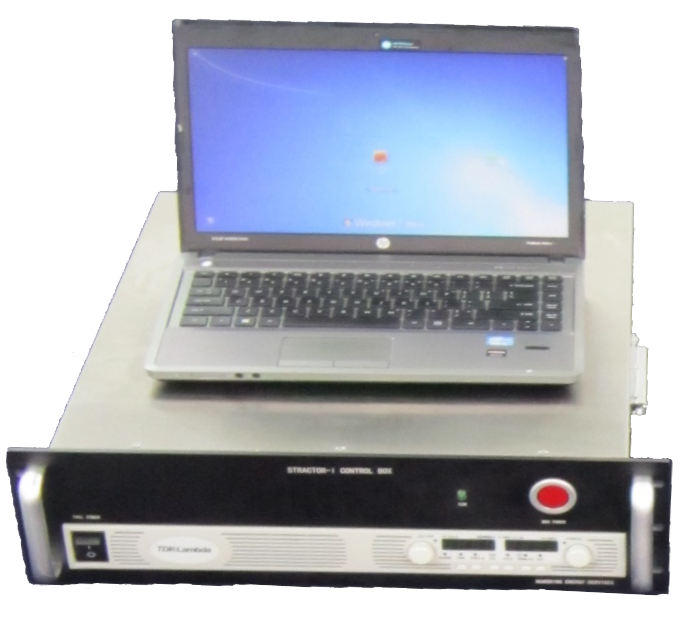

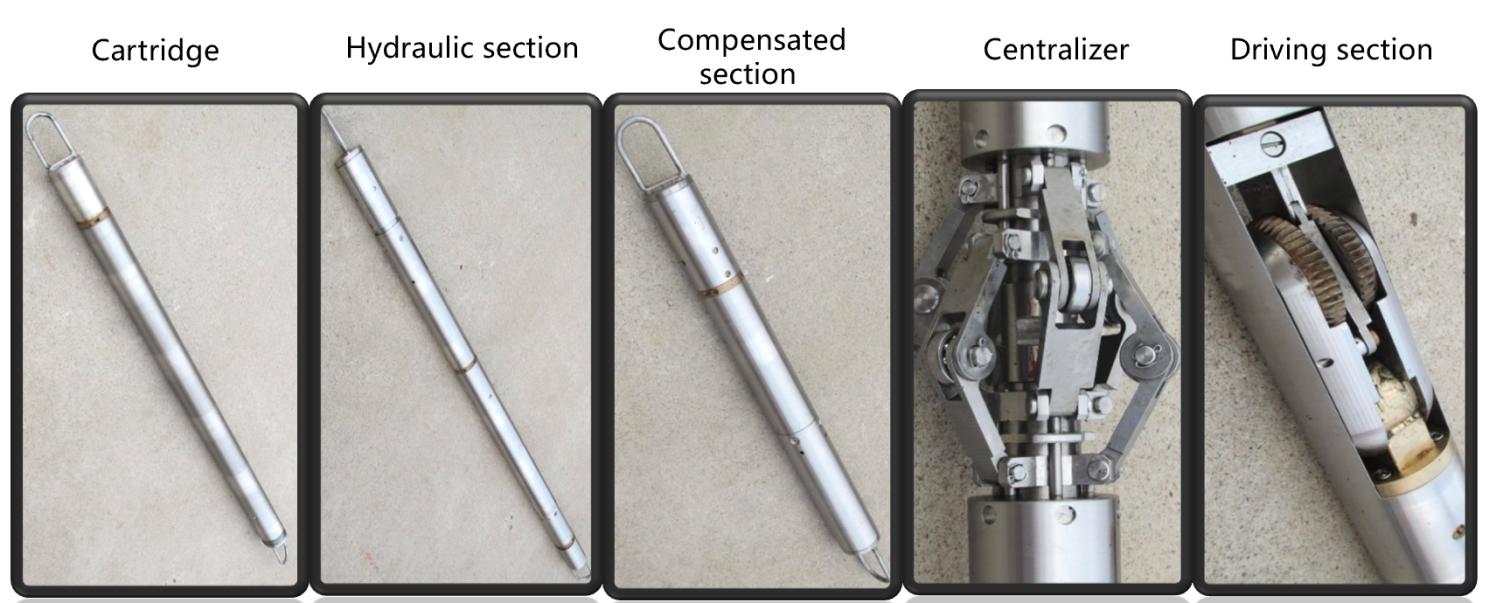

The tractor is an independent system, which consists of two parts: downhole tools and surface controller, and can work in conjunction with the logging wireline.
Φ54mm Tractor Technical specifications
MAX temperature | 175℃ |
MAX pressure | 140MPa |
OD | ф54 mm |
Length | 6.3m(3-drive) |
Weight | 80Kg(4-drive) |
Supply power | 0 ~ 600VDC |
Supply current | 0 - 4 A |
Max speed | 9 m/min |
Max load | 270Kgf ( 1 drive) |
casing size | 4.5″~9.625″ |
Pulling direction | Two-Way |
Applicable wireline | 1 core, 7 cores, 3 cores |
Φ80mm Tractor Technical specifications
MAX temperature | 175℃ |
MAX pressure | 140MPa |
OD | ф 80 mm |
Length | 7. 4m (4-drive) |
Weight | 160Kg(4-drive) |
Supply power | 0 ~ 600VDC |
Supply current | 0 - 4 A |
Max speed | 9 m/min |
Max load | 300Kgf ( 1 drive) |
casing size | 4.5″~9.625″ |
Pulling direction | Two-Way |
Applicable wireline | 1 core, 7 cores |
Φ85mm Tractor Technical specifications
MAX temperature | 150℃ |
MAX pressure | 100MPa |
OD | ф 85mm |
Length | 7. 4m (4-drive) |
Weight | 160Kg(4-drive) |
Supply power | 0~1200VDC |
Supply current | 0 - 4 A |
Max speed | 20 m/min |
Max load | 470Kgf( 1 drive) |
casing size | 4.5″~9.625″ |
Pulling direction | Two-Way |
Applicable wireline | 1 core, 7 cores |
Strong adaptability of wireline（1core 3core 7core）
Fast working speed with not less than 12 m / min
Simple structure and high safety
Strong continuous working ability with
Strong load capacity with most 1400 Kgf( 6 drives)
Can be used for perforating works
Modular design，combine freely ，easy maintain.
New mechanical structure design to reduces mud intrusion
New cartridge design to reduce the heating problem

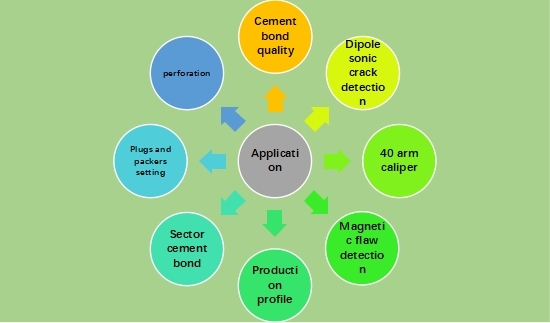

The TRACTOR has applied the following constructions: Measurement of cementing quality； 57 dipole sonic crack detection, 40 arm caliper, magnetic flaw detection, Liquid production profile measure, sector cement bond logging, plugs and packers setting, and horizontal well perforation.
